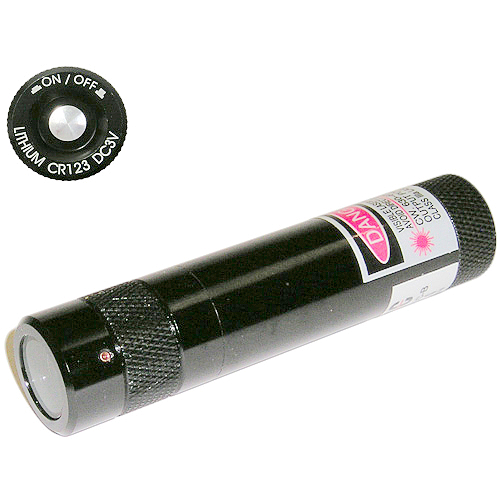

KML-3XXXC-B SERIES
Cross - Mark LASER PROJECTOR
Feature:
●Japan's industrial-grade laser diode
●Industrial design, high stability
●Patented precision focal length adjustable
structure
●AVR+APC Control Circuit
●Long life
SPECIFICATIONS:
Model:KML-3501C-B
Wavelength:630 ~ 650 nm RED
Output Power:< 1 mW
Project Distance:1 m
Line Length:15 cm each line
Line Thickness:0.3 mm
Focus Adjustable
Input Voltage:LITHIUM CR123A 3V
Operating Current:< 70 mA
Operating Temp.:– 10 ~ +50 °C
Safety Class:Class Ⅱ
IP Class:IP 64
Lifetimes:> 30,000 hr
Dimensions:D 20 X L 88 (mm)
Weight:47 ± 5 g
63 ± 5 g (With Battery)
Model:KML-3502C-B
Wavelength:630 ~ 650 nm RED
Output Power:< 2 mW

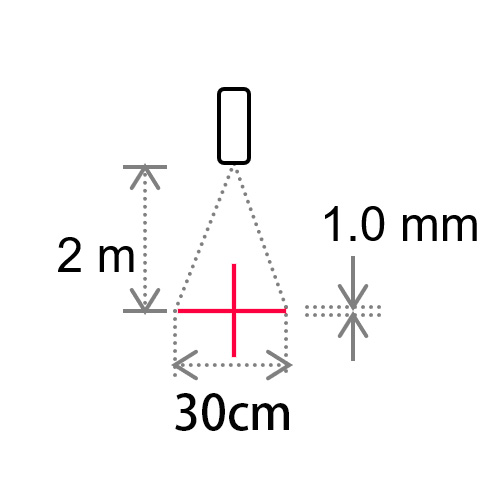

Project Distance:2 m
Line Length:30 cm each line
Line Thickness:1 mm
Focus Adjustable
Input Voltage:LITHIUM CR123A 3V
Operating Current:< 70 mA
Operating Temp.:– 10 ~ +50 °C
Safety Class:Class Ⅲa
IP Class:IP 64
Lifetimes:> 30,000 hr
Dimensions:D 20 X L 88 (mm)
Weight:47 ± 5 g
63 ± 5 g (With Battery)
Model:KML-3503C-B
Wavelength:630 ~ 650 nm RED
Output Power:< 3 mW

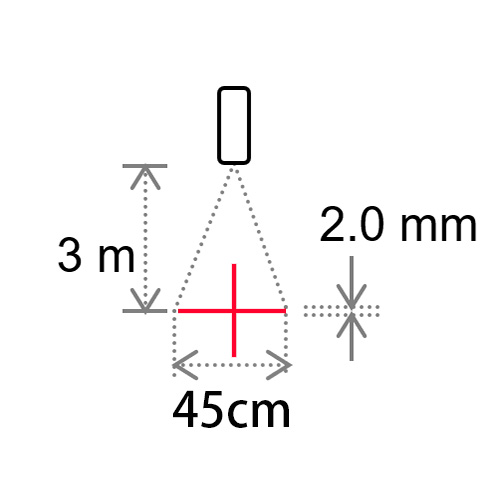

Project Distance:3 m
Line Length:45 cm each line
Line Thickness:2 mm
Focus Adjustable
Input Voltage:LITHIUM CR123A 3V
Operating Current:< 70 mA
Operating Temp.:– 10 ~ +50 °C
Safety Class:Class Ⅲa
IP Class:IP 64
Lifetimes:> 30,000 hr
Dimensions:D 20 X L 88 (mm)
Weight:47 ± 5 g
63 ± 5 g (With Battery)
Applications:
● Garment processing
● Metal working
● Paper processing
● Sewing processing
● Bicycle processing
● Print processing
● Golf processing
Remarks:
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example:
|
